Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Brand Name : Gnee

MOQ : 2PCS

Supply Ability : 300000 Square Meter/Square Meters per Month

Delivery Time : Shipped in 20 days after payment

Packaging Details : Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container

Contact Now

Steel Grating & Bar Grating Solutions
Steel grating is available in various configurations suitable for different applications and load conditions. Hot dip galvanizing or painting provides excellent appearance, durability, and enhanced economy. Galvanized steel grating is widely used in power stations, chemical plants, oil & gas facilities, boiler plants, mining operations, and refineries.
Material Options
Available in Mild Steel (Low Carbon Steel) or Stainless Steel to meet diverse industrial requirements.
Technical Specifications
Plain type and serrated type bearing bars range from 20 x 3 to 100 x 10 mm. I-section types include 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, and 75 x 7 x 4 mm configurations.
No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3; US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8"
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm; US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel
5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated / teeth, I bar, serrated I bar
7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
Product Gallery

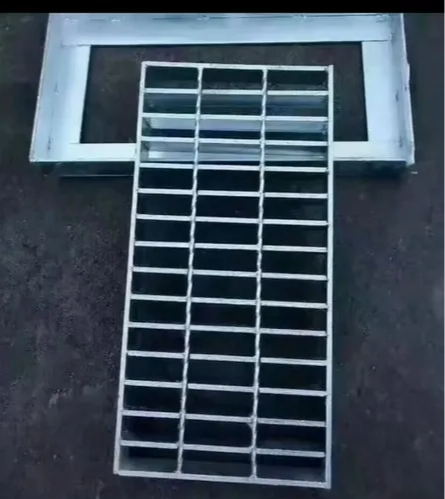

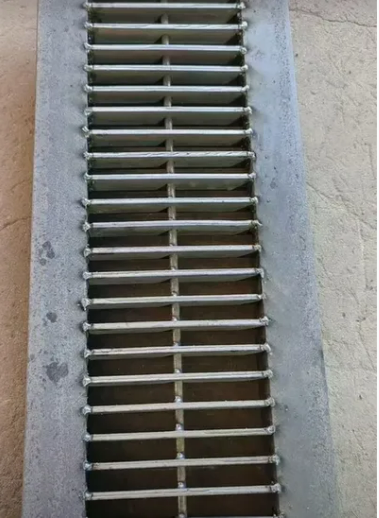

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes
